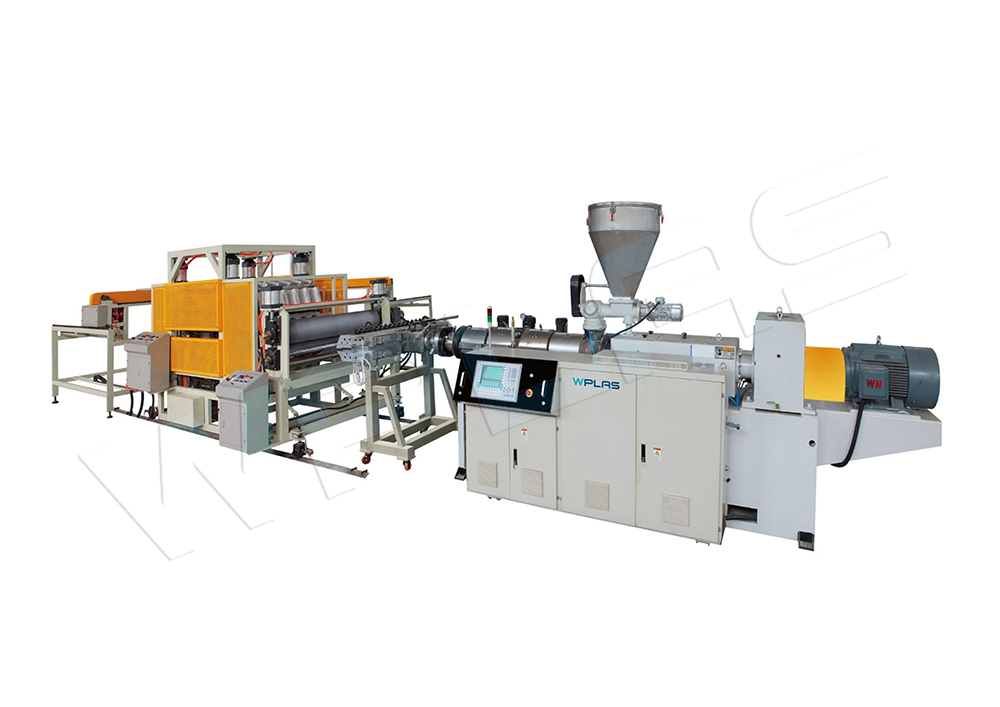

PVC+ASA/PMMA Glazed Roof Tile Production Line
Features and Application

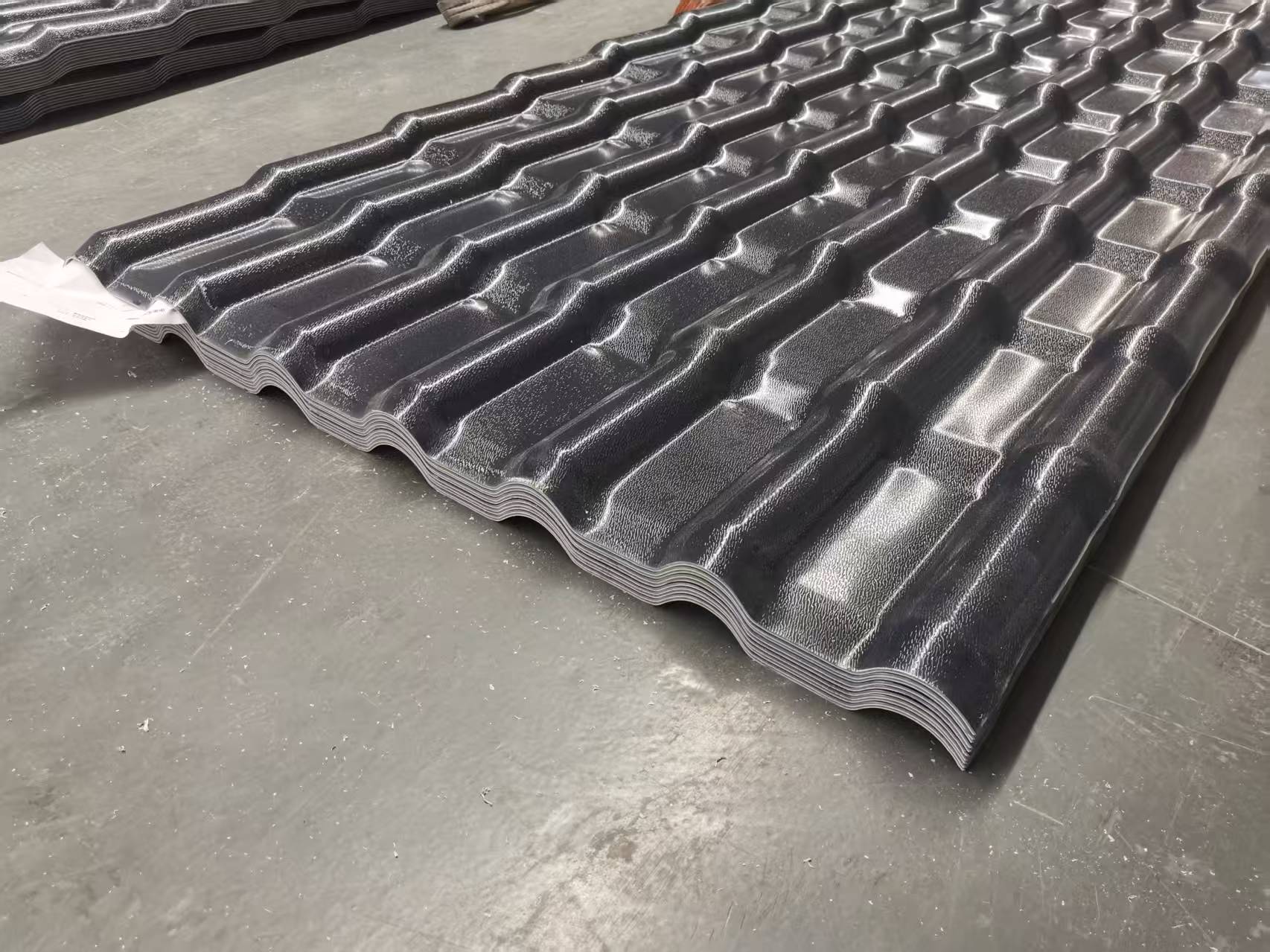

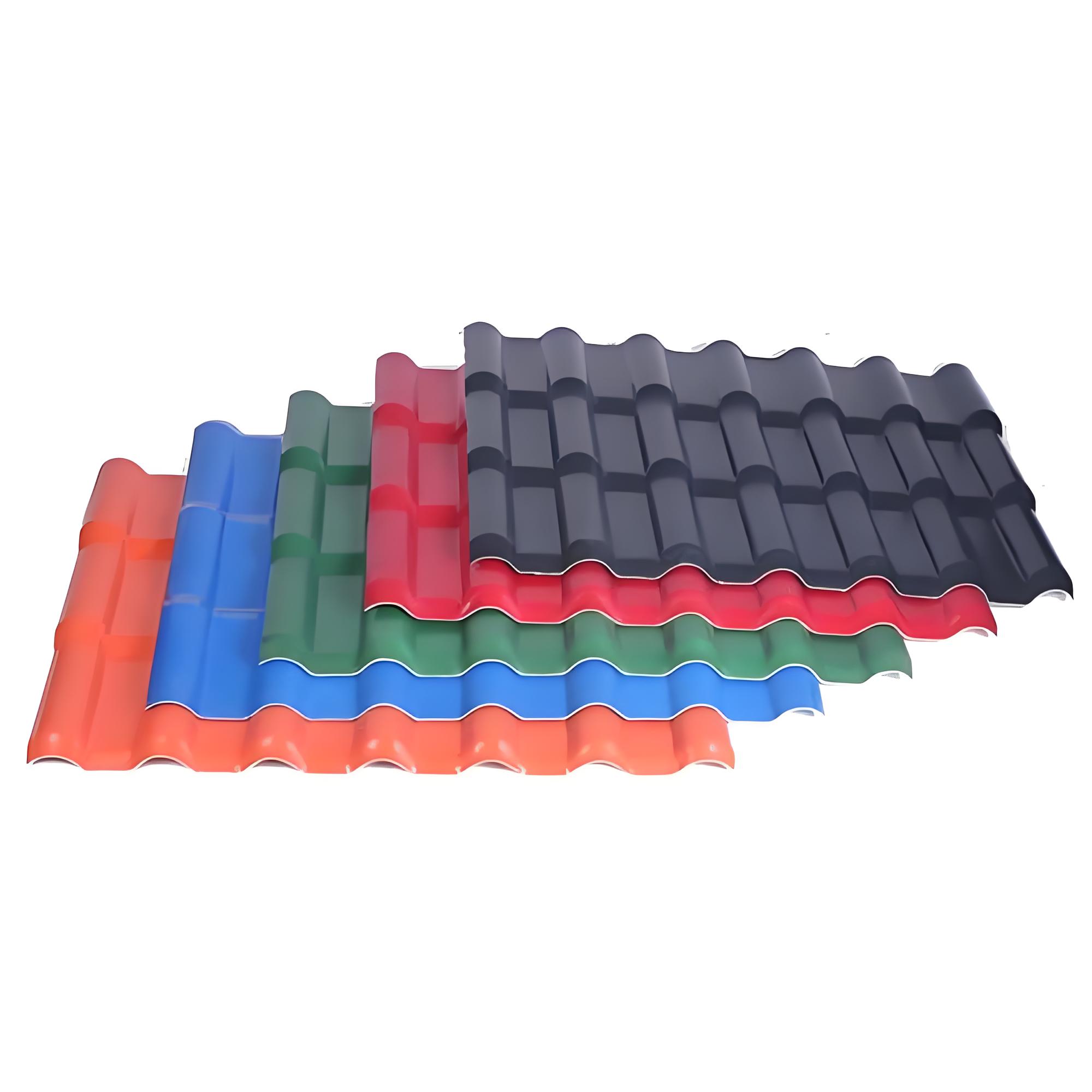

1. The production line is mainly used to produce PVC glazed roof tile which width is 720, 880, 924, 1050mm, thickness is 2mm, 2.5mm and 3mm.

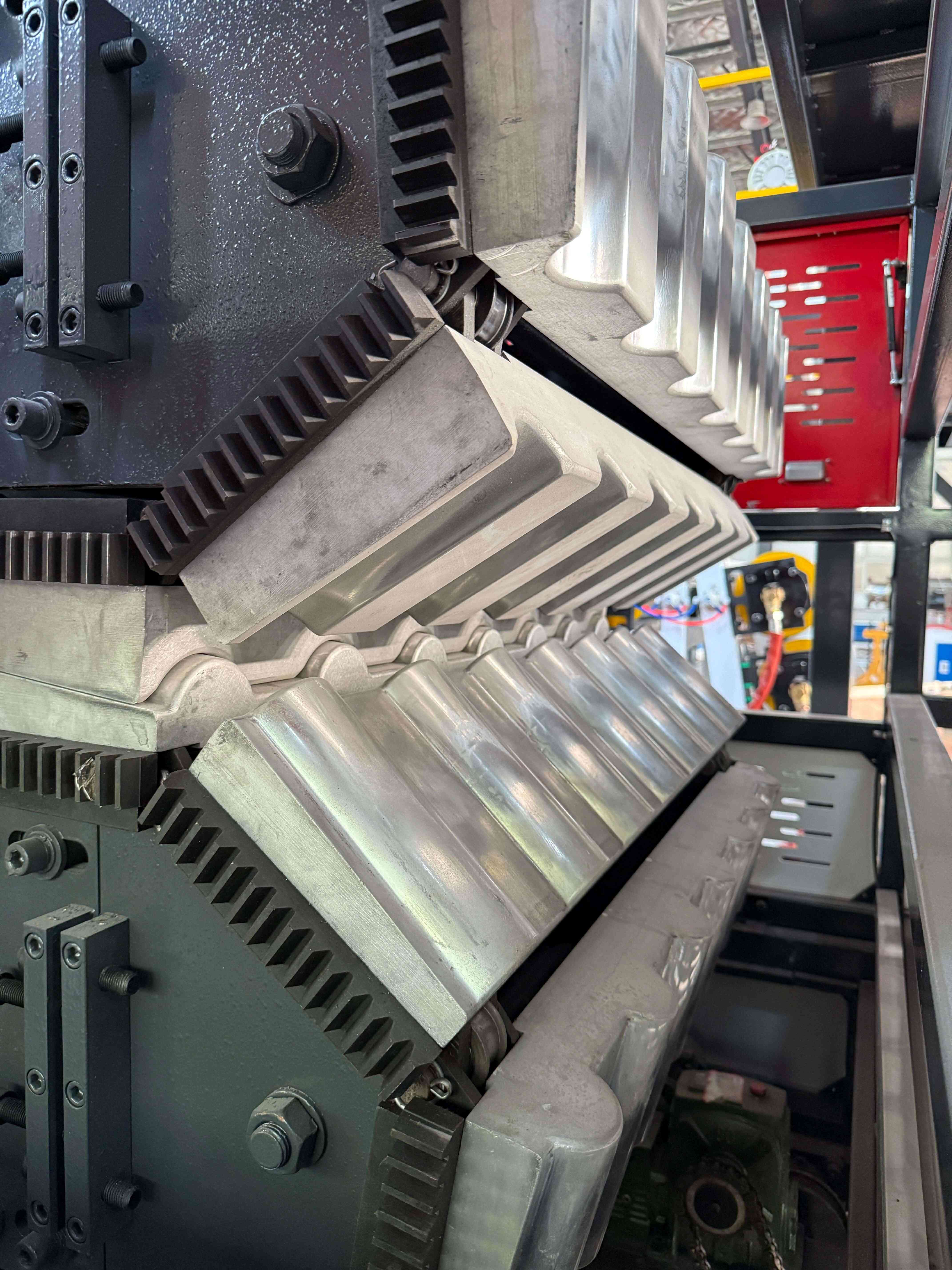

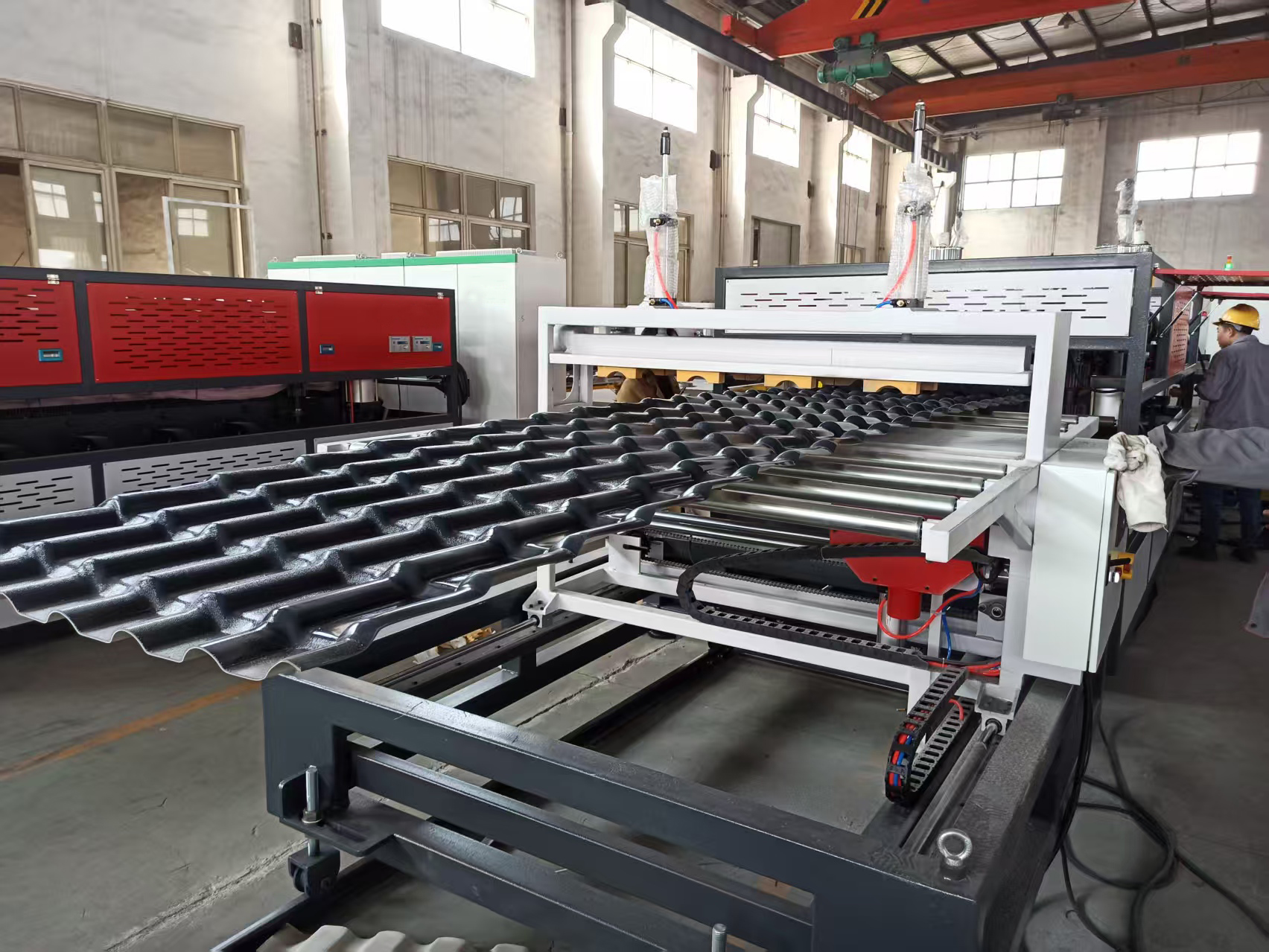

2. PVC, ASA or PMMA compound roof tile production line consists of conical twin screw extruder SJSZ80/156, single screw co-extruder, extruding tool, forming machines for main tile and ridge tiles, haul-off, cutter and stacker.
3. Supply formula guide service and staple raw material purchase.
4. Professional analyzing and design by considering production cost and tile's performance.
Main parameters:
Raw material | Product width | Product thickness | Extruder model | Capacity |
PVC + ASA/PMMA | 720/880/924/1050mm | 2.0-3.0mm | SJSZ80/156+SJ50/30 | 350-400 kg/h |
PVC + ASA/PMMA | 720/880/924/1050mm | 2.0-3.0mm | SJSZ92/188+SJ50/30 | 550-600 kg/h |
