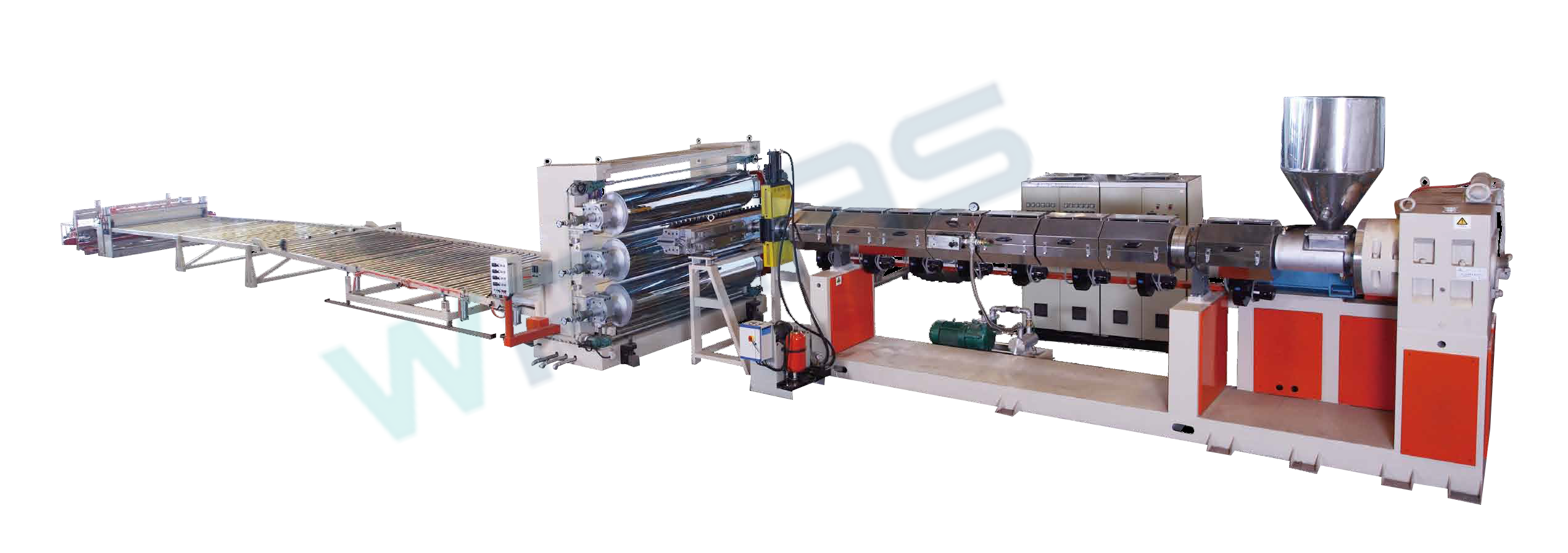

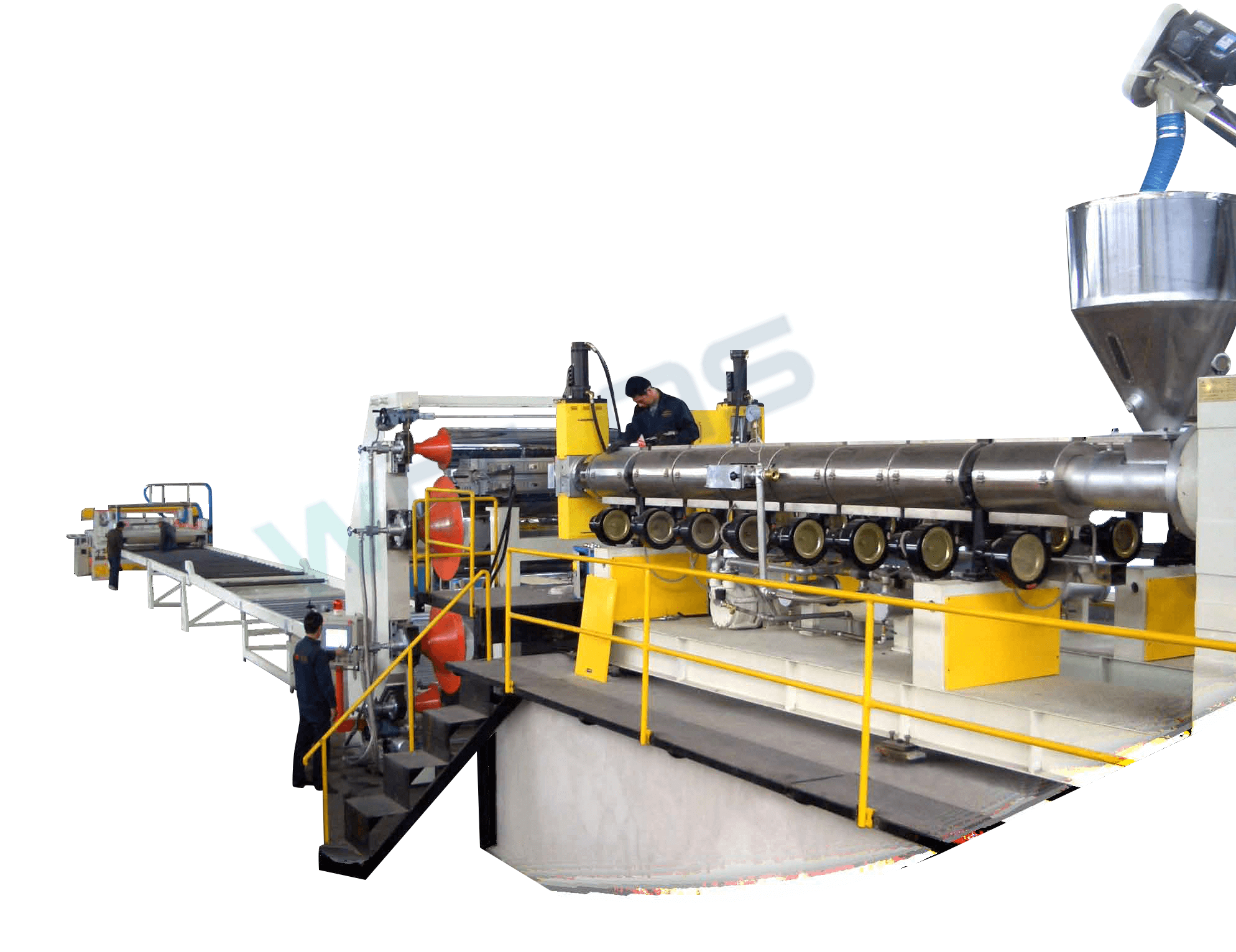

PP, PE, ABS Thick Board Extrusion Production Line
YST1500-2500
Quantity:
Application:

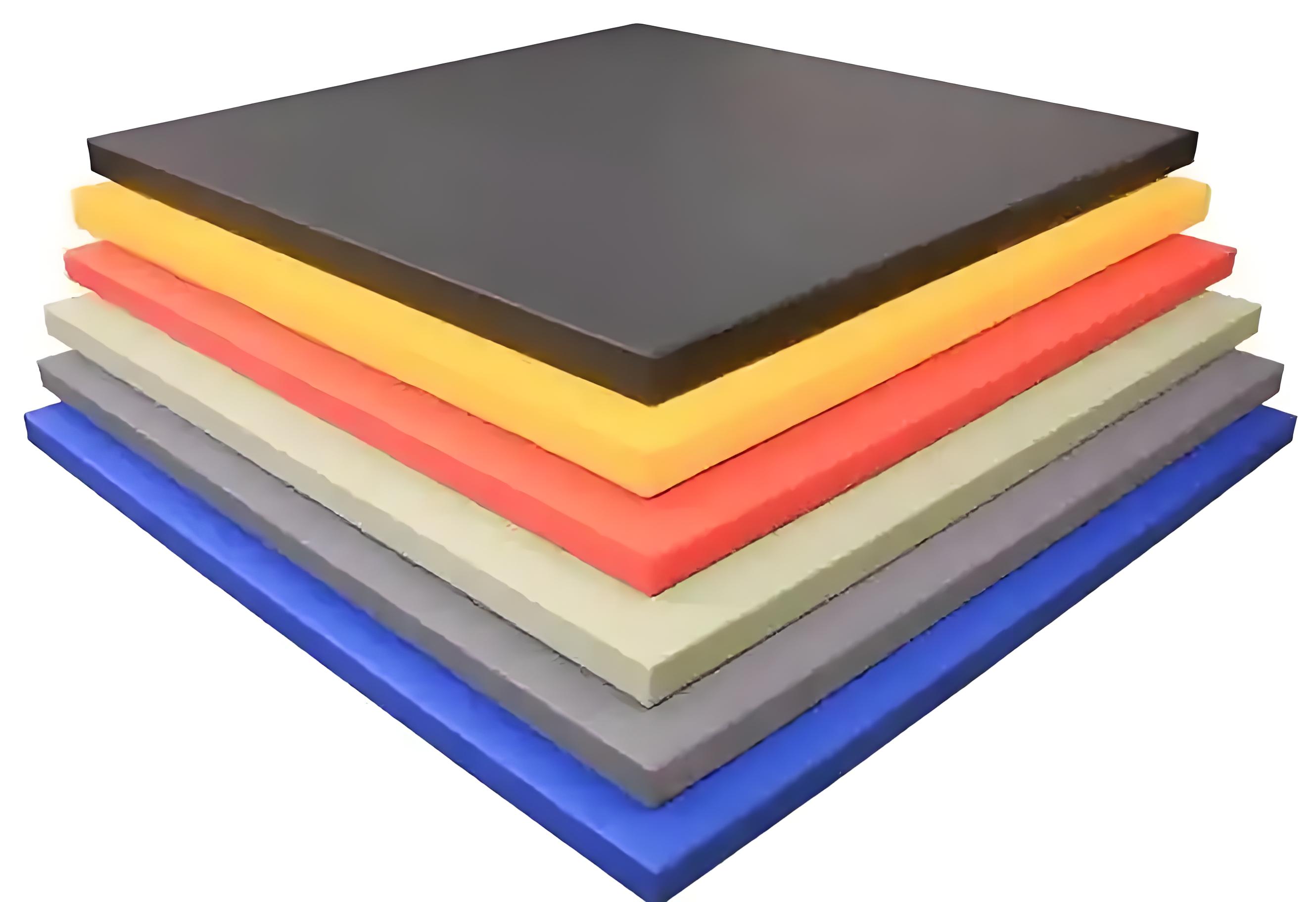

The board produced by this equipment are suitable for chemical container tank, food processing table facet board and other industrial board.
Main parameters:
Model | Extruder specification (mm) | Three-roller specification (mm) | Capacity (kg/h) | Product Width (mm) | Product Thickness (mm) |
YST1500 | Φ120/35 | Φ400×1500 | ≥300 | 1300 | 2.0-25 |
YST1800 | Φ150/35 | Φ500×1800 | ≥500 | 1600 | 3.0-30 |
YST2500 | Φ150/35x2 | Φ700×2500 | ≥1000 | 2200 | 3.0-40 |
Equipment for products with special specification could be custom-made. | |||||
