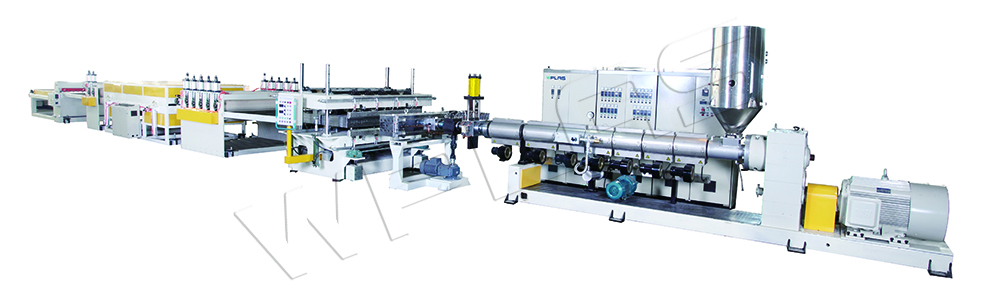

PC, PP, PE Hollow Grid Sheet Extrusion Production Line
YSH1200-2200
Quantity:
Application:

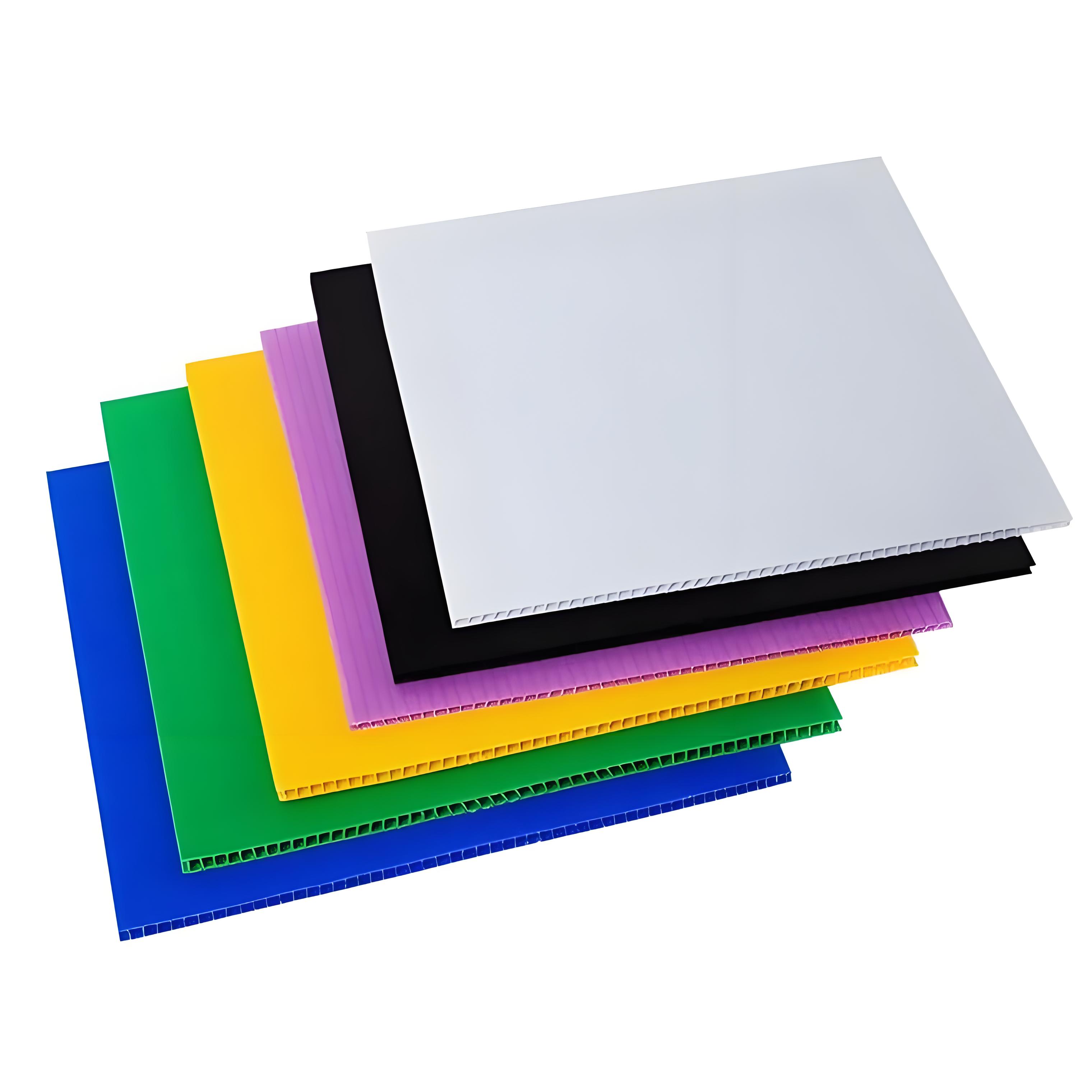

The hollow grid sheet produced by this equipment are suitable for daylighting ceiling of market, sports stadium, open-air swimming and public facilities. They are also fit for canopy of station, parking and corridor, sound insulation screen of high-speed road and trestle, advertisement of signpost, light box and recycle case, etc.
Main parameters:
Model | Extruder specification (mm) | Capacity (kg/h) | Product Width (mm) | Product Thickness (mm) |
YSH1200 | Φ100/35 | ≥200 | 1000 | 2-20 |
YSH1600 | Φ110/35 | ≥250 | 1400 | 3-20 |
YSH1800 | Φ120/35 | ≥300 | 1600 | 4-20 |
YSH2200 | Φ120/35 | ≥400 | 2100 | 4-20 |
Equipment for products with special specification could be custom-made. | ||||
