PVC / WPC Door Panel Extrusion Production Line
Features and application:

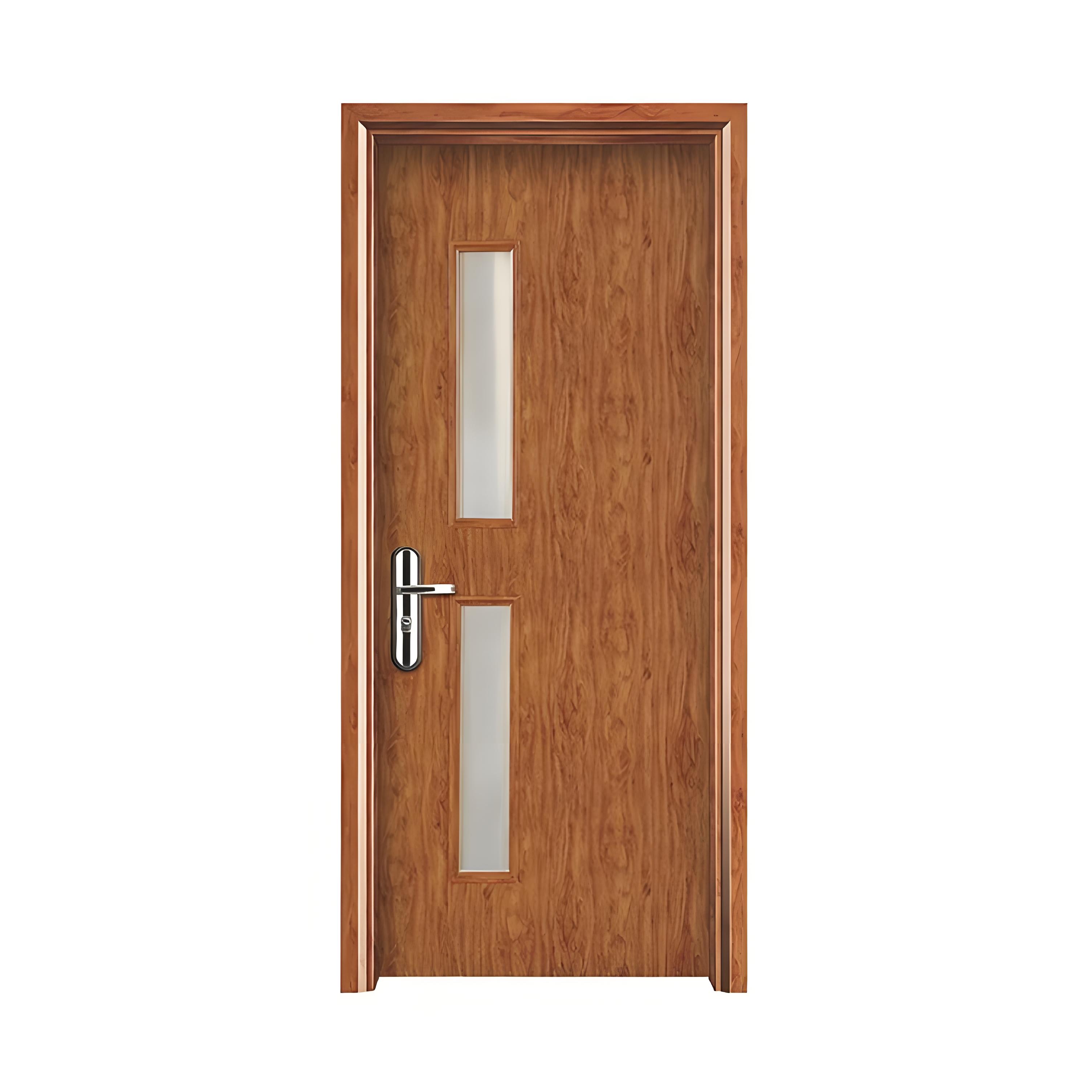

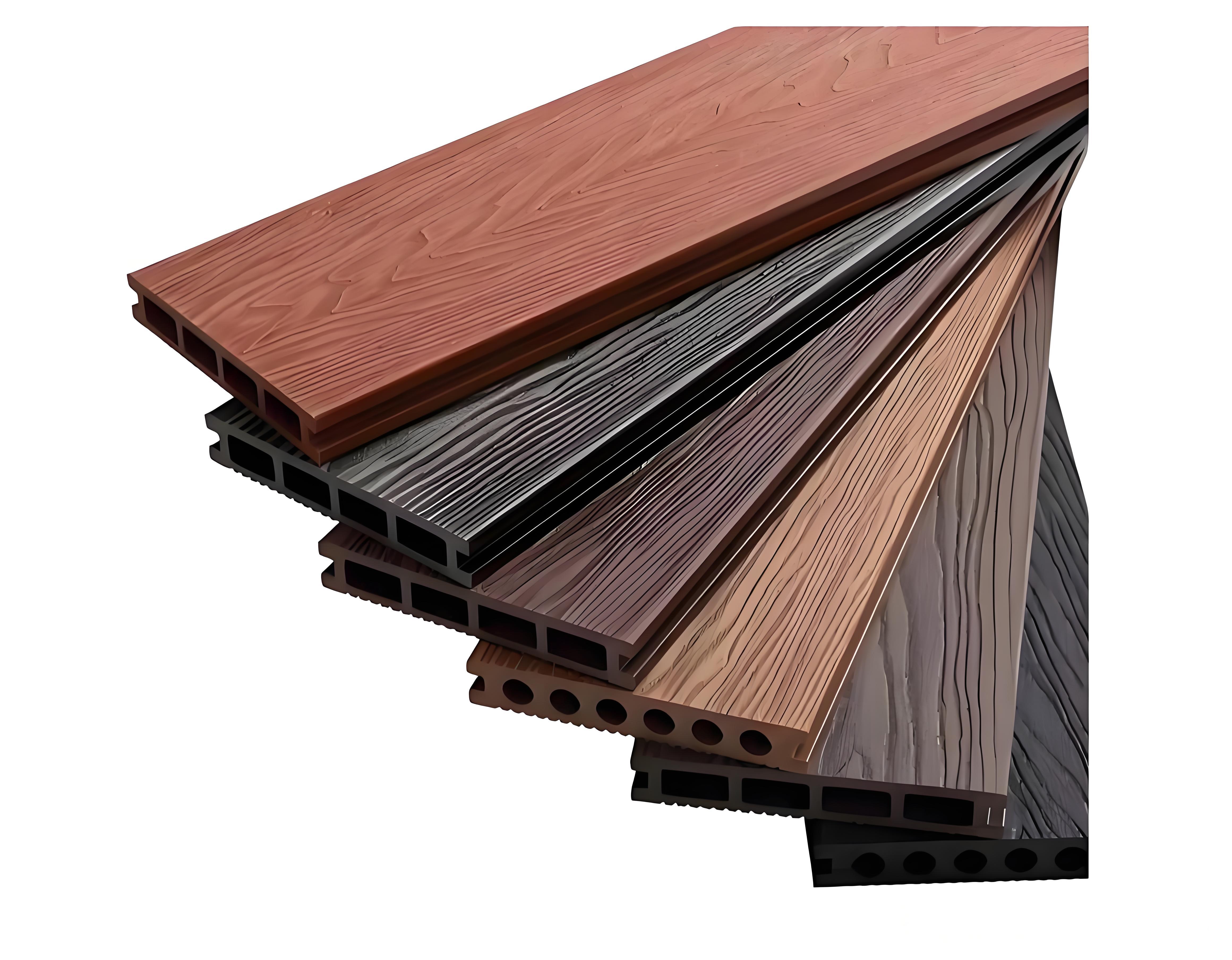

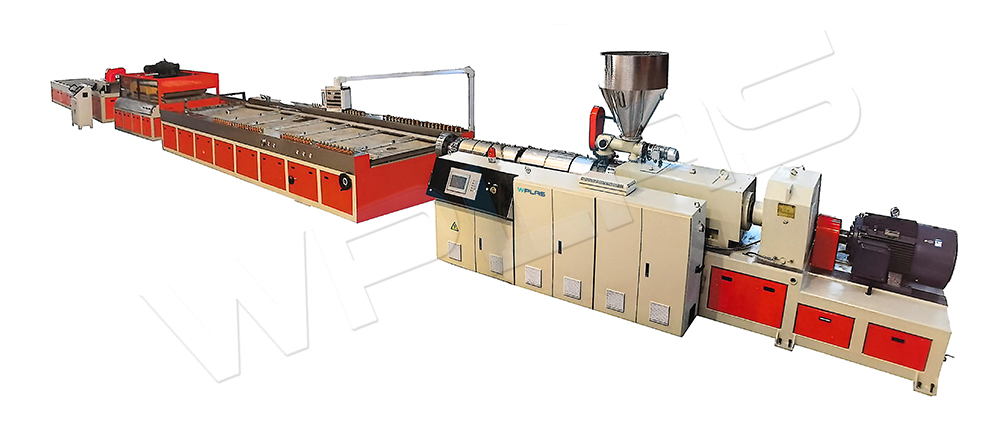

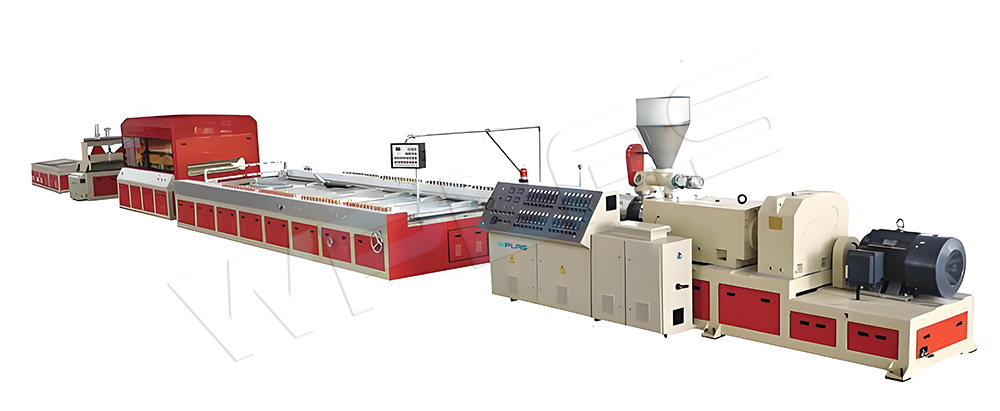

This production line use specially designed SJSZ conical twin screw extruder, it is mainly used for producing construction board, wide door panel, cabinet board, indoor and outdoor decorative materials etc. The whole production line includes conical twin screw extruder, vacuum calibration table, haul off, cutting machine and stacker, as well as another optional auxiliary equipment. With powerful chiller to guarantee the calibration effect of the door panel, the extrusion width can be optional between 600mm to 1250mm.
Main parameters:
Model | MBF600 | MBF800 | MBF1000 | MBF1250 |
Max. width of product (mm) | 600 | 800 | 1000 | 1250 |
Extruder model | SJSZ80/156 | SJSZ80/156 | SJSZ92/188 | SJSZ92/188 |
Max. extrusion capacity (kg/h) | 360 | 360 | 600 | 600 |
Main motor power (kw) | 55 | 55 | 110 | 132 |
Consumption of cooling water (m3/h) | 12 | 13 | 15 | 18 |
Consumption of compressed air (m3/min) | 0.5 | 0.6 | 0.8 | 1.0 |
