Plastic Profile Extrusion Production Line

SJYF108-500

Quantity:

Contact Now

add to cart

Features:

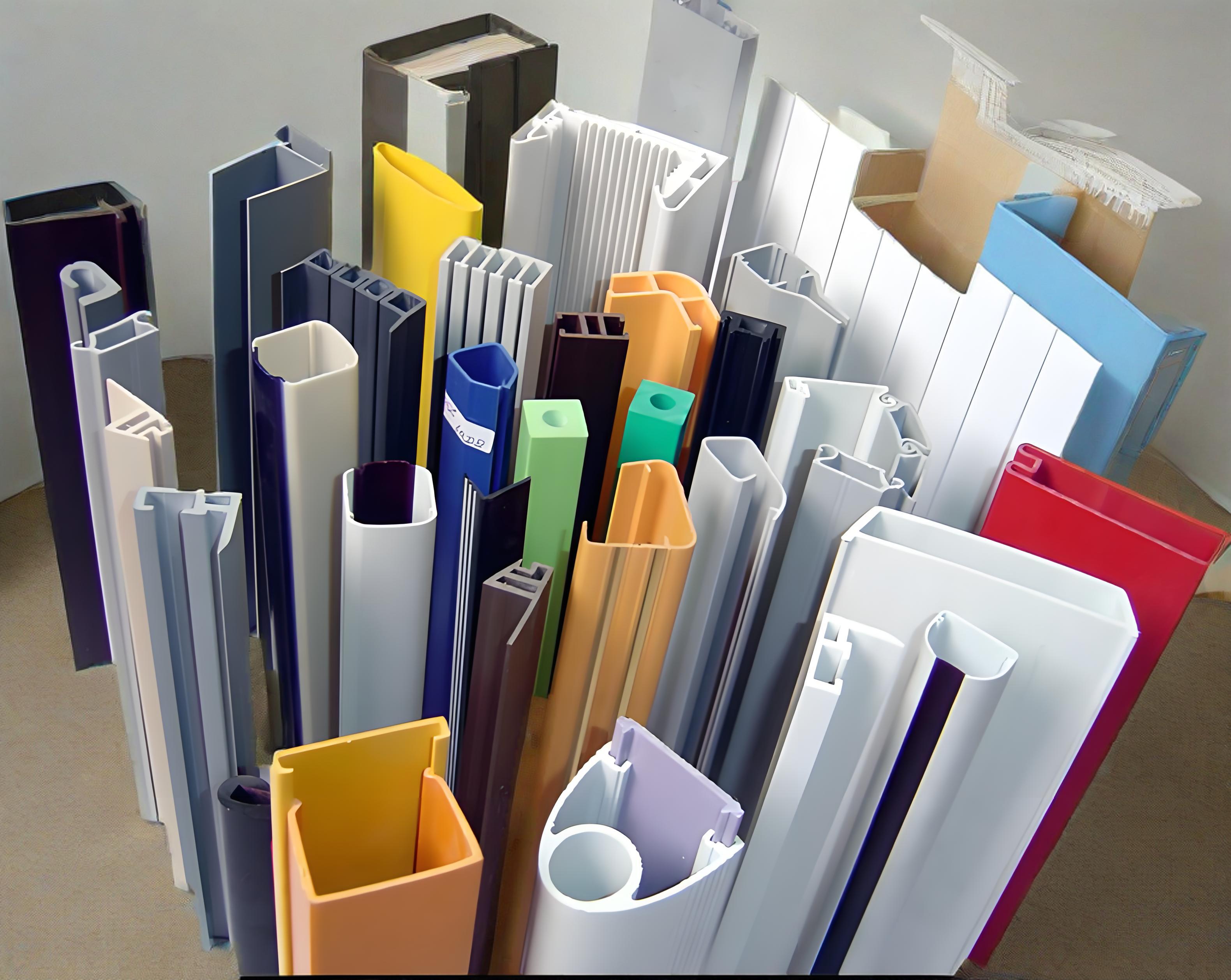

This PVC wood-plastic profile production line is mainly used for manufacturing the following products:

● Door and window profiles

● Skirting line

● Edge banding and lampshades

● Special-shaped cable perforated conduit

● Wood-plastic indoor and outdoor decorative profiles etc

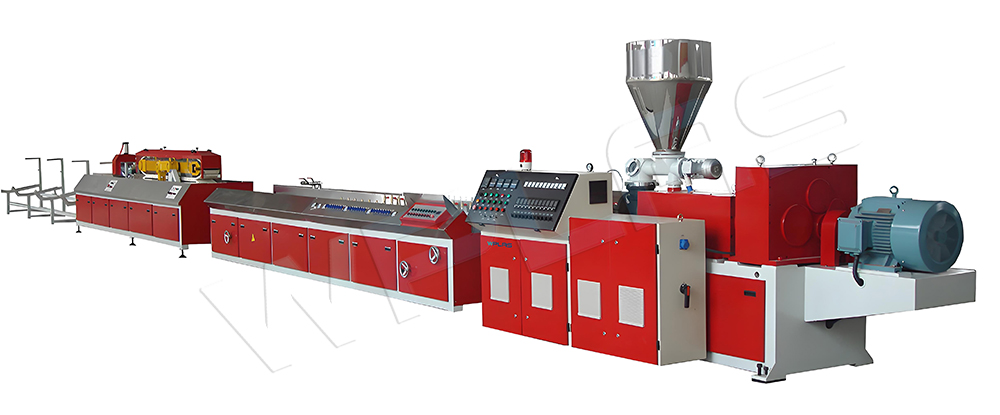

This production line is composed of conical twin screw extruder, vacuum calibration table, haul off, cutting unit, film-sticking device and stacker. According to different profile section and mould design, varied models of conical twin screw extruder is adopted for extrusion.

Main parameters:

Model	SJYF108	SJYF180	SJYF240	SJYF300	SJYF400	SJYF500
Max. width of product (mm)	108	180	240	300	400	500
Extruder model	SJSZ45/100	SJSZ55/110	SJSZ65/132	SJSZ65/132	SJSZ65/132	SJSZ80/156
Max. extrusion capacity (kg/h)	80	150	250	250	250	360
Extruder power (kw)	15	22	30/37	30/37	30/37	55
Consumption of cooling water (m3/h)	5	5	7	7	8	10
Consumption of compressed air (m3/min)	0.2	0.2	0.3	0.3	0.3	0.4
