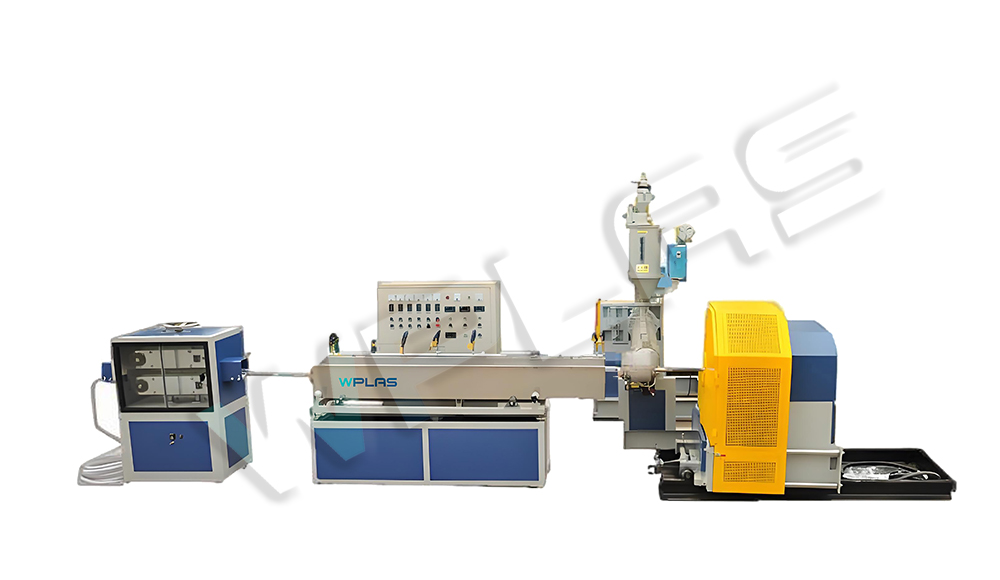

PVC Steel Wire Reinforced Hose Production Line
Features:

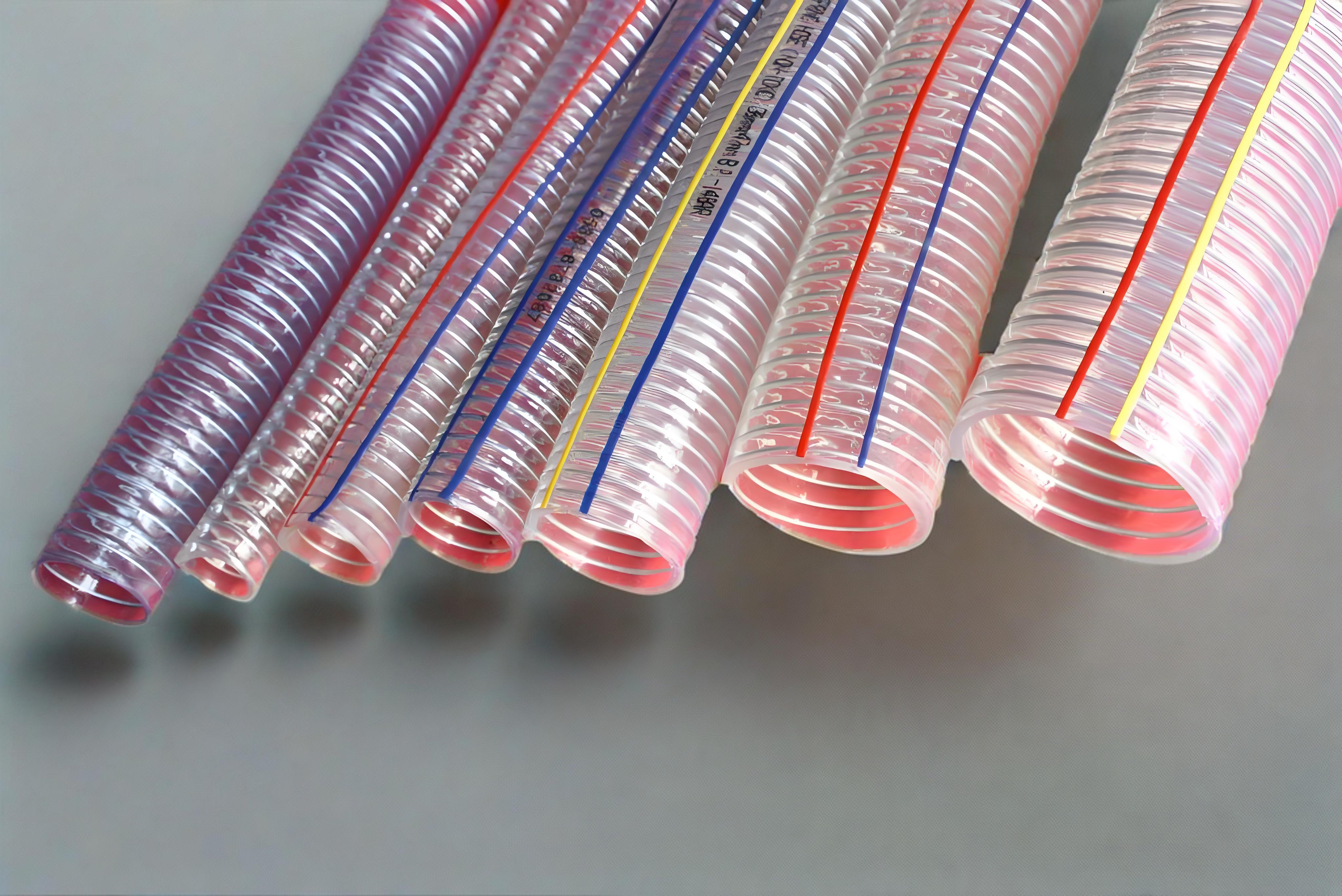

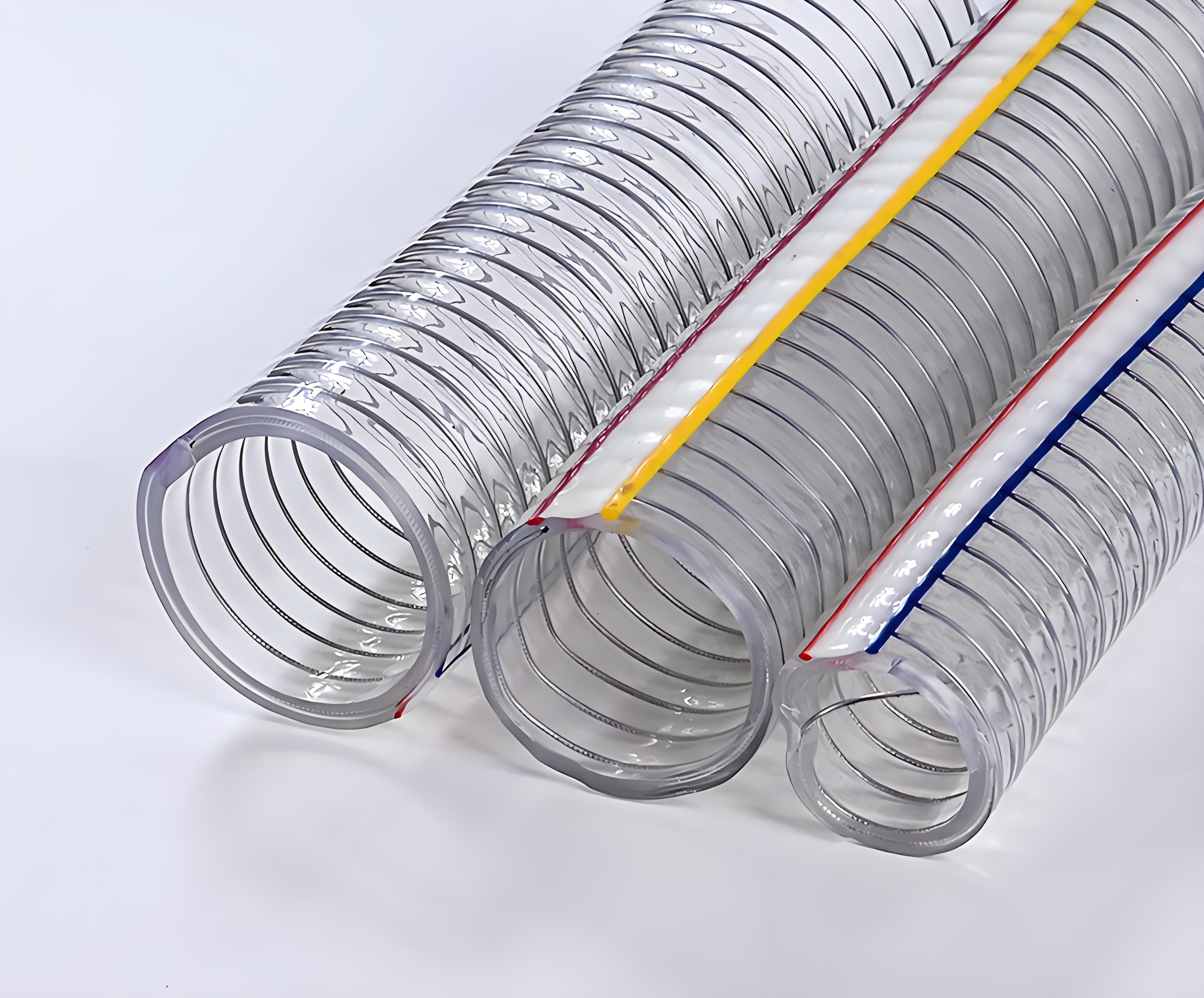

The machine is used to produce PVC steel wire reinforced transparent pipes. The pipe wall is made of transparent PVC plastic. In the pipe inner-wall, there are spiral steel wire. The kind of pipe has the advantage of extrusion resistance, corrosion resistance, static electricity resistance, anti-high pressure and good running. It is suitable for the conveying high pressure or combustible gas and liquid, heavy suction and delivery of liquid sludge. It is mainly used in fields machinery, such as chemical industry, building, irrigation and vacuum pumps etc.
Main parameters:
Model | WPSW45 | WPSW65 | WPSW90 | WPSW120 | WPSW150 |
Extruder | SJ45/30 | SJ65/30 | SJ90/30 | SJ120/30 | SJ150/25 |
Pipe Diameter Range (mm) | Ф12-Ф25 | Ф20-Ф50 | Ф50-Ф102 | Ф75-Ф150 | Ф150-Ф250 |
Output (kg/h) | 20-40 | 40-75 | 70-130 | 100-150 | 150-200 |
Installed Power (KW) | 30 | 40 | 50 | 75 | 110 |
