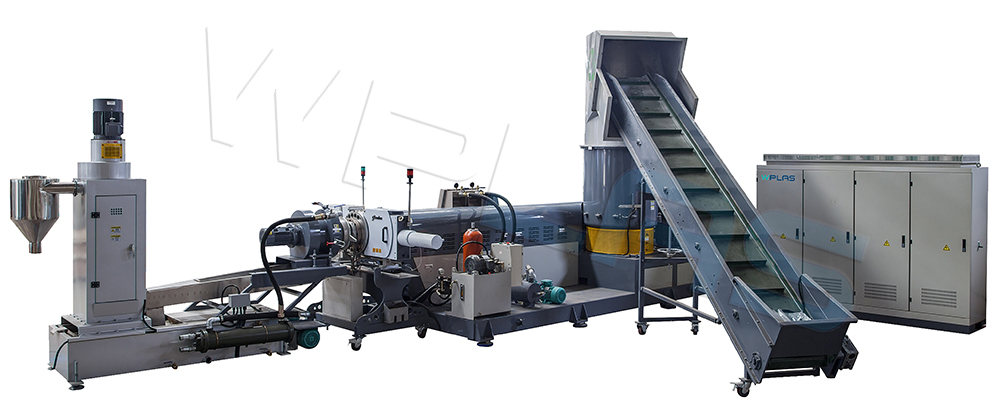

Plastic Film Pelletizing Line (Single Stage)
Features:
The single stage PE, PP film pelletizing line is mainly consisted by the following equipment: belt conveyor (roller conveyor), agglomerator, extruder, (vacuum degassing system), hydraulic screen changer, water ring cutting system, dewatering machine, air blowing system, (feeding and drying system) etc.
Usage：
This recycling production line is the best choice for recycling waste plastics like PE/PP film, silk, flakes (thickness ≤0.5mm) strip, woven bags and extrusion leftover waste.
Main parameters:
Model | HS80 | HS100 | HS120 | HS160 |
Extruder motor | 55KW | 90KW | 132KW | 220KW |
L/D | 40:1 | 37:1 | 33:1 | 30:1 |
Agglomerator diameter | 800mm | 1000mm | 1200mm | 1500mm |
Agglomerator motor | 55-75KW | 75-110KW | 90-132KW | 110-160KW |
Capacity | 150-250kg/h | 250-450kg/h | 350-600kg/h | 600-900kg/h |
Screen changer | Customer Optional | |||
