PET Bottle Recycling Washing Line
PETB
Quantity:
Features:

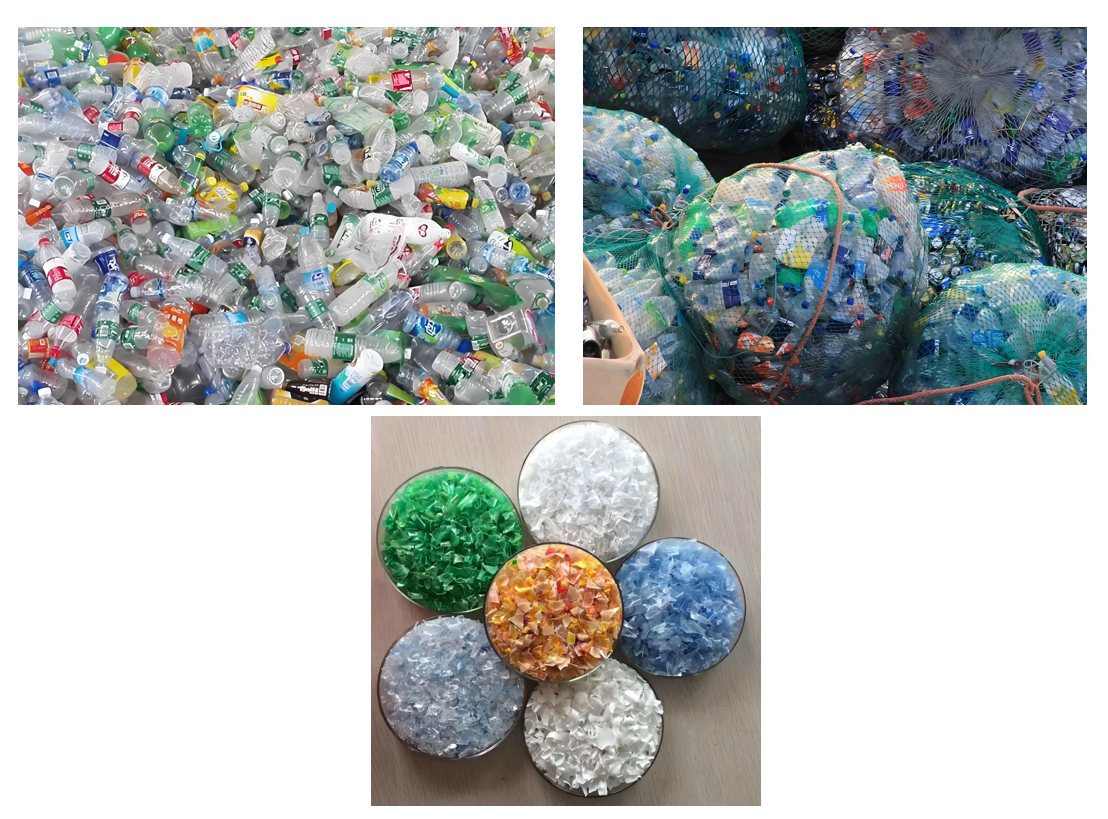

Plastic PET bottle recycling washing line is used to recycle post-consumer PET bottles into clean PET flakes. The key point of PET recycling system is the rate of removing the impurities. The higher purified PET flakes will improve the end product and lower the manufacturing cost of next application.
We could design different PET recycling solutions basis on the requirement of standards on final flakes.

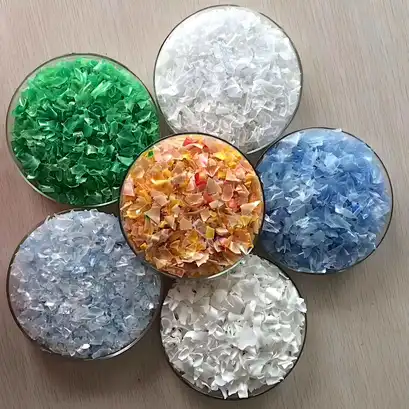

PET Flake Quality Reference:
Moisture | <0.5% | Label | <10ppm |
PVC | <20ppm | Variegated tables | <10ppm |
Glue | <10ppm | PH | Neutral |
PP/PE | <10ppm | Total Impurity | <100ppm |
Metal | <10ppm | Flake size | 12mm, 14mm customized |
Main parameters:
Capacity (kg/h) | Power (KW) | Area (m2) | Labor | Water (m3) |
1000 | 220 | 400 | 6 | 2 |
2000 | 500 | 750 | 8 | 3 |
3000 | 700 | 1000 | 10 | 5 |
4000 | 900 | 1500 | 12 | 8 |
5000 | 1200 | 1800 | 15 | 10 |
Remark:
● The design is different as per material and capacity.
